ULTIMATE G42 6 mm & G52 Guided Surgery Drills

ULTIMATE G42 6 mm and G52 drills for guided implant surgery featuring direct guidance, DLC coating, 11.5 mm and 13 mm lengths, and precise laser depth markings.

Direct guidance through the surgical guide, progressive drilling sequence and immediate protocol identification thanks to the ULTIMATE color-coding system and progressive laser markings.

Direct guidance

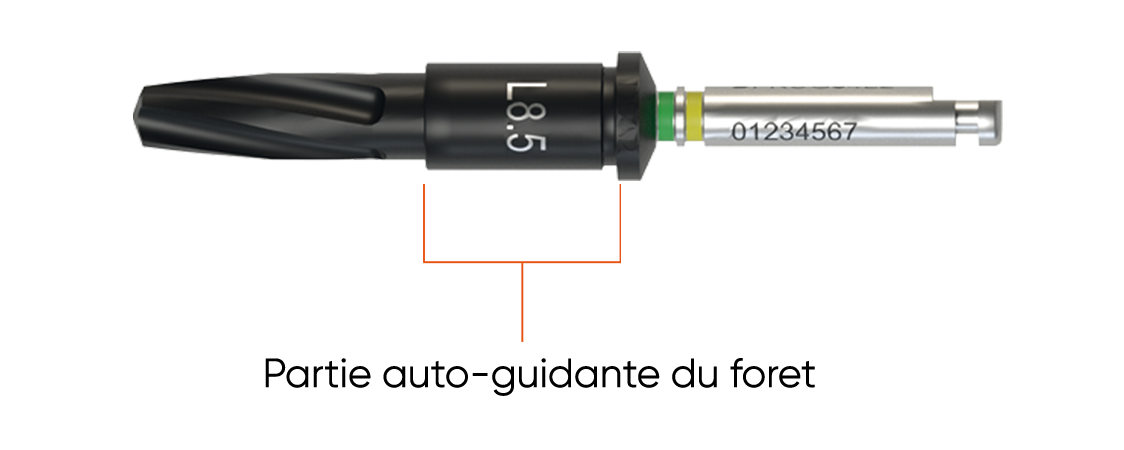

Partie auto-guidante du foret G42 Global D

The drill bits are designed to be guided in the sleeve before bone contact, without an intermediate reducer, to ensure continuity of guidance.

2-part drill bits

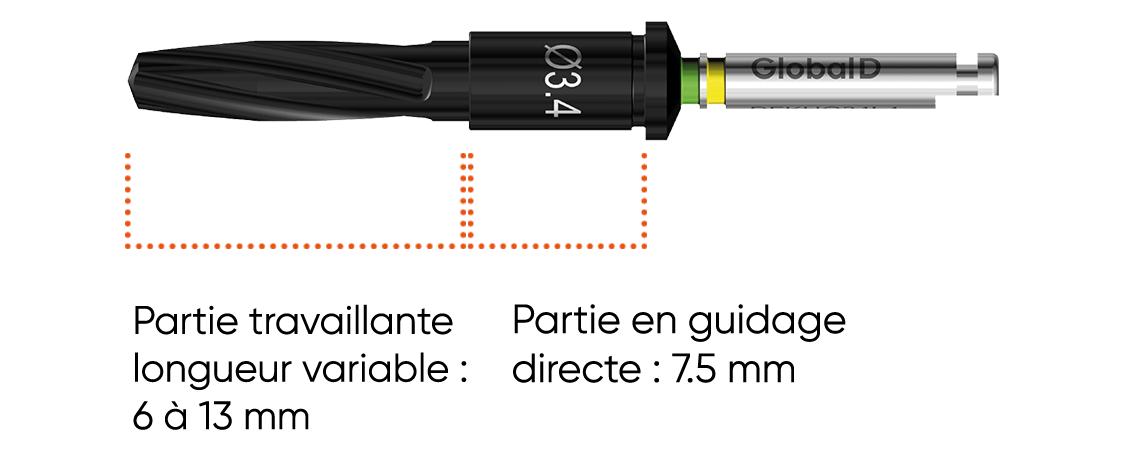

Les différentes parties d'un foret de chirurgie guidée G42 - Global D

7.5 mm self-centering in direct guidance in the sleeve + working part from 6 to 15 mm depending on the drill bit.

DLC coating

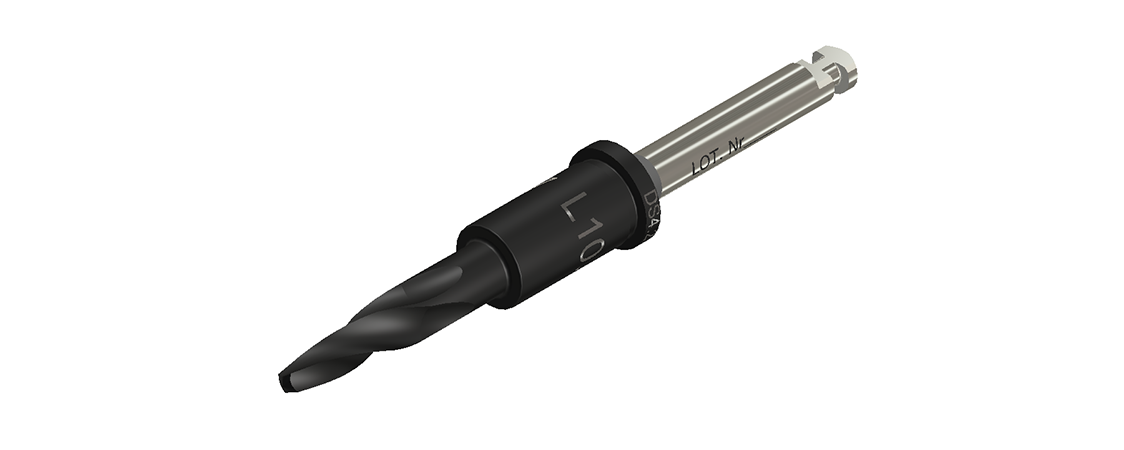

Traitement DLC (Diamond Like Carbon) pour une meilleure résistance à l’usure et friction réduite dans la douille

DLC (Diamond-Like Carbon) coating provides enhanced wear resistance and reduced friction during drilling procedures under saline irrigation.

ULTIMATE philosophy

Progressive sequence following our ULTIMATE protocol from drill bit diameter Ø2.4 to 4.9 mm.

The drill bits precisely follow the ULTIMATE color code for quick identification and visual safety during the surgical sequence.

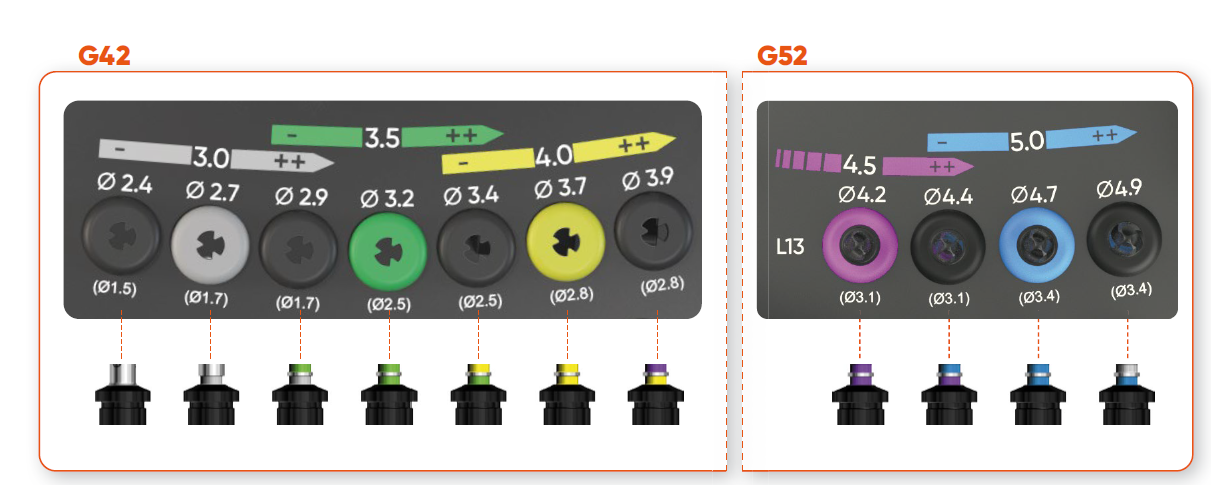

Progressive sequence following our ULTIMATE protocol

Drilling protocol

Lengths 6 / 8.5 / 10 mm: direct drilling to the planned length.
Lengths 11.5 / 13 mm: alternating drilling at 8.5 mm length then the final length for each diameter.
Speeds: drill bits 600–800 rpm max (depending on indications), with specific recommendations for optional instruments.

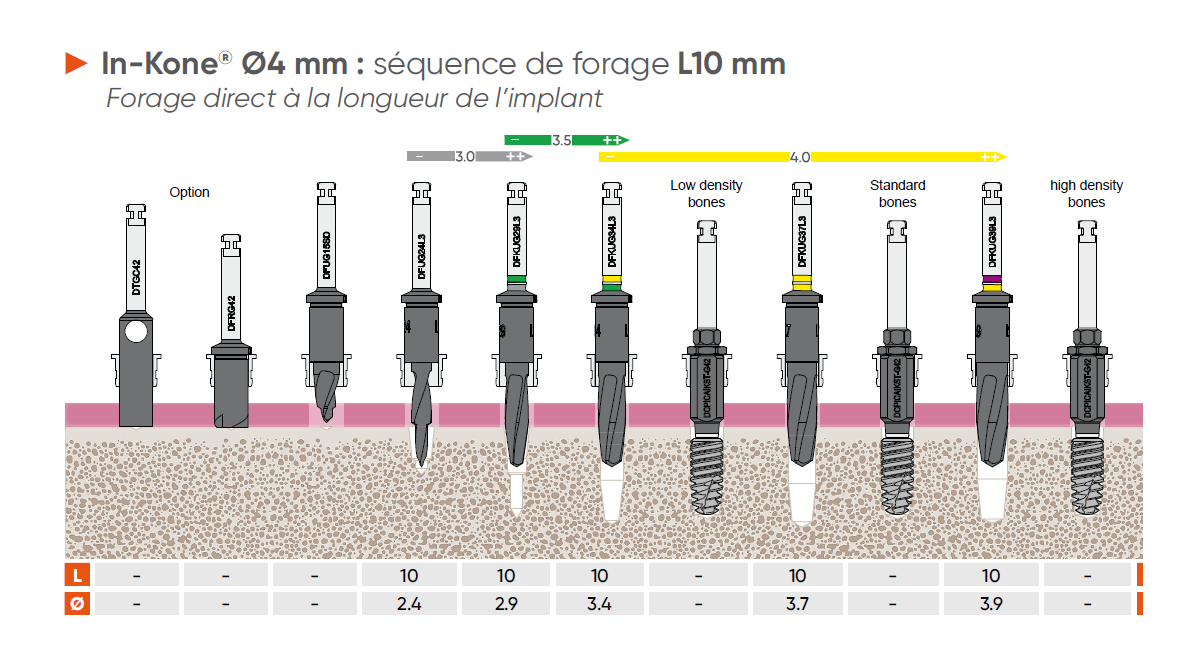

In-Kone 4mm diameter drilling protocol: drilling sequence Length 10 mm
